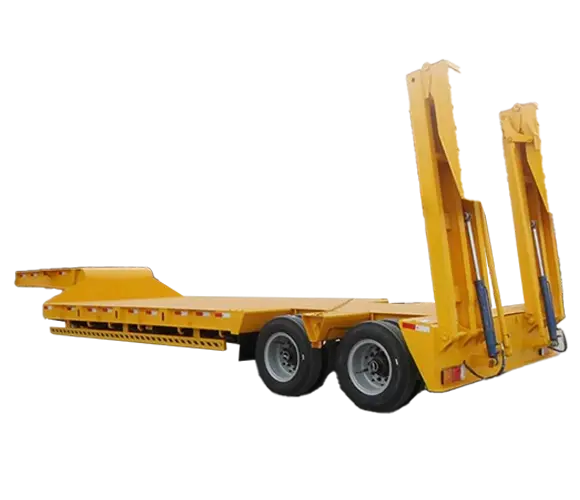

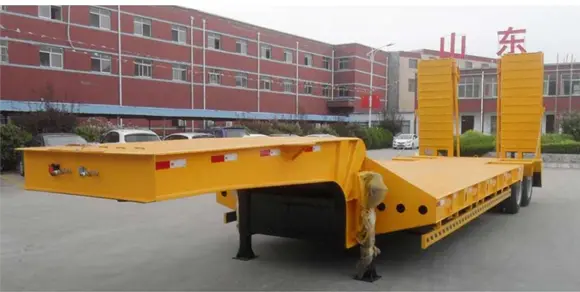

2 Axle 40T Low-Bed Trailer with Automatic Ramp
This 2 axle 40T low-bed trailer is equipped with automatic ramp, customizable dimensions and payload ranging from 40 tons to 100 tons. It adopts JOST kingpin and landing gear, FUWA/BPW/ZY axles, reinforced mechanical suspension and WABCO dual-line brake system. Suitable for transporting excavators, loaders and other heavy engineering machinery.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
This 2 axle 40T low-bed trailer is designed for heavy equipment transportation with automatic ramp for easy loading and unloading. The overall dimension and load capacity can be customized according to customer requirements. Its low deck design reduces loading height effectively, which is perfect for over-height heavy machinery.
The platform floor is made of 4/5/6mm thick anti-slip checkered plate, wear-resistant and durable for heavy loads. The automatic ramp saves labor and greatly improves loading efficiency for tracked machines. It is equipped with reliable JOST kingpin and 19-inch landing gear for stable connection and safe parking.
You can choose FUWA, BPW, ZY or other famous brand axles. Two suspension options are available: reinforced mechanical leaf spring suspension or rigid suspension, delivering stable performance on rough mine and construction roads. The dual-line brake system adopts WABCO RE-6 emergency relay valve, T30/30 air chambers and 45L air tank to ensure stable braking performance.
The 24V electrical lighting system meets international road standards, complete with signal lights and reflectors. It is a practical lowbed trailer widely used by heavy equipment transport companies.
| Item | Parameter |
| Overall Dimension(L*W*H) | 14000×3000×1700 mm (customizable) |
| Payload | 40000 kg – 100000 kg |
| Platform Floor | 4/5/6 mm checkered plate |
| Ramp | Automatic ramp |
| Kingpin | JOST 2.0 / 3.5 inch, bolted or welded type |
| Landing Gear | JOST 19 inch |
| Tires | 11R22.5 /12R22.5 /11.00R20 /12.00R20 |
| Axles | FUWA / BPW / ZY or other brands |
| Suspension | Reinforced mechanical suspension with leaf springs / Rigid suspension |
| Brake System | Dual line, WABCO RE-6 emergency relay valve, T30/30 air chamber, 45L air tank |
| Electrical System | ISO 24V 7-core socket; brake light, turn signal, reverse light, position light, reflector, fog lamp; standard 6-core cable harness |
- Transport heavy construction machinery: excavators, bulldozers, loaders, road rollers
- Transport oversized equipment, generator sets, drilling machines and farm machinery
- Heavy haulage for mining, construction projects and equipment rental business
- Transport large steel structures and other heavy industrial components
