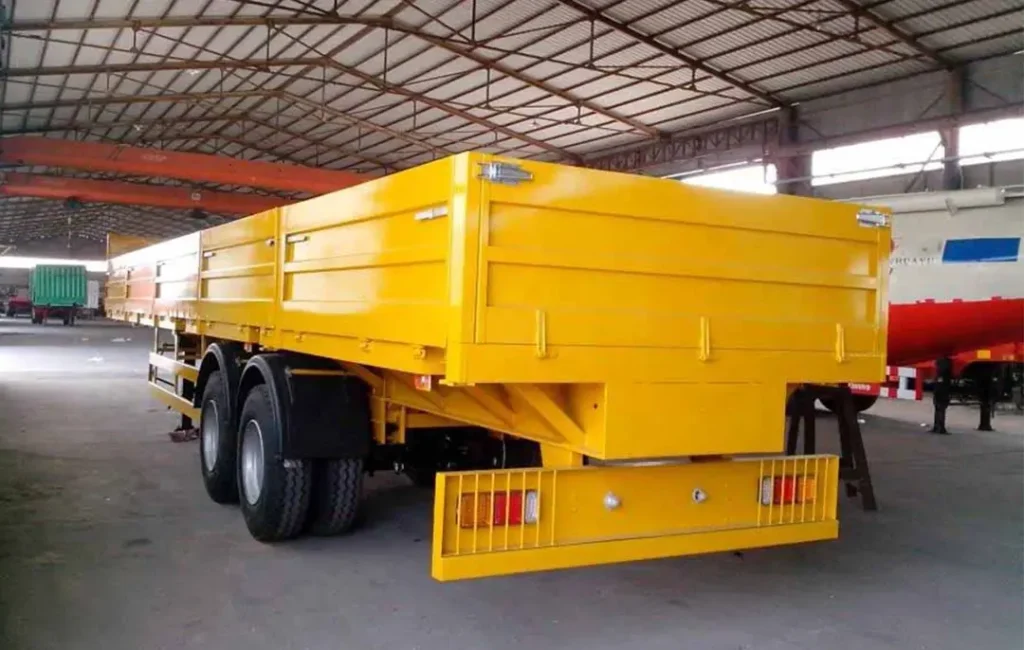

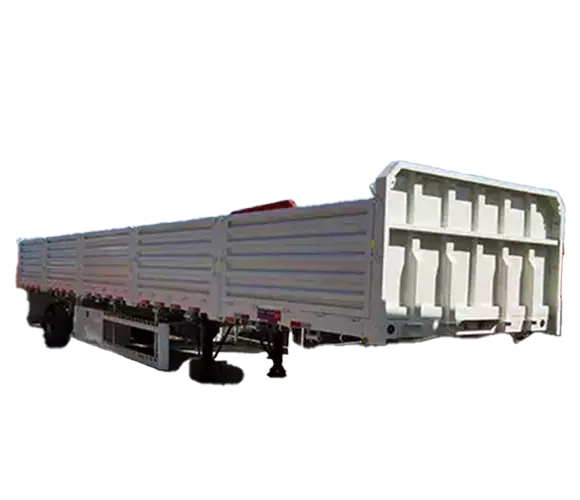

2 Axles Side Wall Flatbed Bulk Semi Trailer
This 2 axles side wall flatbed bulk semi trailer has a payload of 60 tons and tare weight around 7.2 tons. It is fitted with twist locks for 20ft / 40ft containers, BPW/FUWA/ZY 13T axles, mechanical suspension, JOST kingpin and landing gear, WABCO brake system. Suitable for bulk cargo and container transportation.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
This 2 axles side wall flatbed bulk semi trailer is a multi-purpose flatbed trailer for both bulk cargo and container transport. The main beam adopts high strength design with 500mm height, thick top, bottom and web plates, which guarantees strong load-bearing capacity under heavy working conditions.
It is equipped with multiple twist lock options, which can carry one 20ft container, two 20ft containers or one 40ft container. The 3mm anti-slip checkered platform floor is durable for loading different goods. It is fitted with reliable 13T axles from BPW, FUWA or ZY, and heavy-duty mechanical suspension (American or German style), matched with thick leaf springs for stable running on rough roads.
JOST brand kingpin and 28T linkage outrigger landing gear are adopted for reliable connection and stable parking. The brake system uses WABCO relay valve and TKL air chambers, optional ABS for higher driving safety. The complete 24V lighting system meets international road traffic regulations.
All standard accessories including toolbox, spare tire carrier and tool kits are supplied. We can adjust structure, painting and configurations according to customer requirements. It is a cost-effective heavy-duty trailer widely favored by freight and logistics companies.
| Item | Parameter |
| Tare Weight | Approx. 7.2 T |
| Payload | 60 T |
| Overall Dimension(L*W*H) | 12500×2500×1500 mm |
| Main Beam | Height: 500mm; Top plate: 14mm×140mm; Bottom plate:16mm×140mm; Middle web:8mm |
| Twist Locks | 4+4 / 8 /12 pcs, for 1×20ft, 2×20ft or 1×40ft container |
| Platform Floor | 3mm checkered plate |
| Kingpin | JOST 2.0 / 3.5 inch, bolted or welded type |
| Axles | 3 pcs, 13T, BPW / FUWA / ZY brand |
| Suspension | Mechanical suspension (American type or German type) |
| Leaf Spring | 10 layers, 90mm×16mm, 6 sets |
| Tires | 11R22.5 /12R22.5 /11.00R20 /12.00R20 /315/80R22.5 /385/65R22.5, 12 pcs + 1 spare tire |
| Rims | 9.0-22.5 |
| Landing Gear | JOST 28T, Linkage Outrigger |
| Spare Tire Carrier | 1 set |
| Tool Box | 1 unit |
| ABS | Optional |
| Brake System | WABCO RE6 relay valve, T30/30+T30 air chamber, 40L air tank |
| Electrical System | ISO 24V 7-core socket; brake light, turn signal, reverse light, position light, reflector, fog lamp; standard 6-core cable harness |
| Accessories | Tool box, spare tire bracket, full set of standard tools |
| Others | Comply with factory standard or customized per client’s requirement |
- Transport bulk goods, grain, construction materials, bagged cargo
- Transport 20ft and 40ft shipping containers
- Road heavy haulage, logistics and port freight
- Long-distance transportation for mines, farms and building projects
