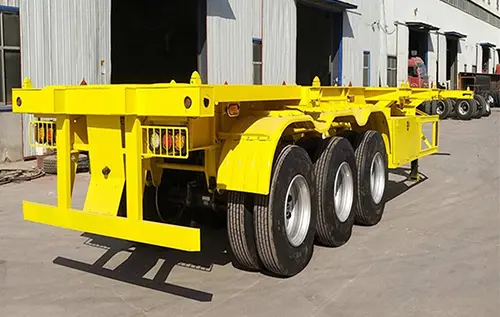

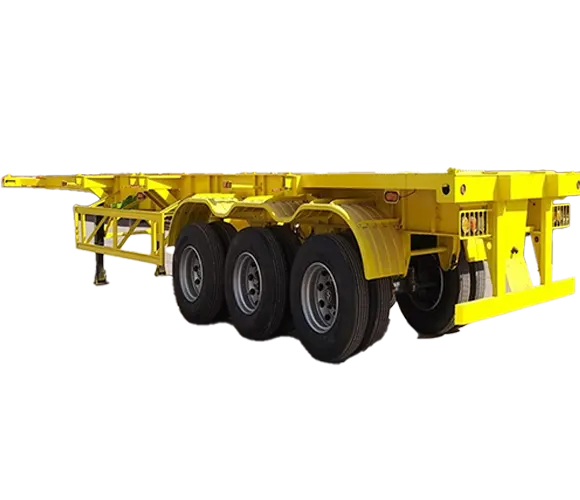

3 Axles 40FT Skeleton Container Semi Trailer
This 3 axles 40FT skeleton container semi trailer is designed for 40ft container transportation. It adopts high strength steel frame, equipped with heavy-duty mechanical suspension, JOST landing gear, WABCO brake system and 24V LED lights for overseas markets. It can be customized in size, widely used for port, depot and highway container haulage.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
This 3 axles 40FT skeleton container semi trailer is professional container transport chassis, suitable for loading and transporting 40-foot standard shipping containers. The overall dimension can be customized according to customer requirements. The main frame is constructed of 5mm high wear-resistant high strength steel, with strong load-bearing capacity and long service life.
It is equipped with 3 axles, 12 tires and 2 spare tire carriers for backup during long-distance transport. The trailer adopts heavy-duty mechanical suspension, JOST landing gear and reliable WABCO brake system to guarantee stable braking and safe driving. It is fitted with 24V LED lights that meet overseas market standards, and one set of standard tool box.
The whole frame is coated with polyurethane paint, which provides good anti-rust and anti-corrosion performance. This skeleton trailer is widely used in ports, container depots and logistics transportation. All specifications can be adjusted to adapt to different regional road standards and customer demands.
| Item | Parameter |
| Overall Dimension(L*W*H) | 11000×2500×3650 mm (Customized size available) |
| Frame Material | 5mm high wear-resistant high strength steel |
| Axles | 3 axles |
| Tires | 12 pcs |
| Spare Tire Carrier | 2 units |
| Suspension | Heavy duty mechanical suspension |
| Landing Gear | JOST brand |
| Brake System | WABCO brand |
| Lights | LED lights, specially for overseas market |
| Voltage | 24V |
| Tool Box | 1 set |
| Painting | Polyurethane paint, excellent anti-rust performance and long service life |
- Transport 40ft standard shipping containers
- Port, container yard and logistics park container transfer
- Intercity container highway transportation
- Transport other containerized cargo
