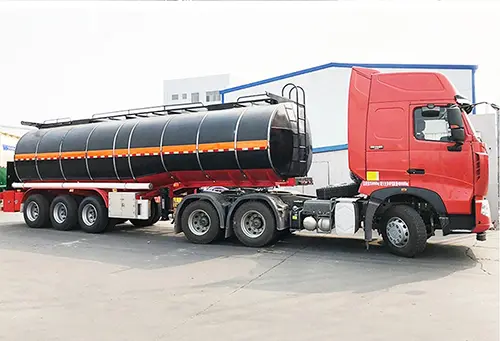

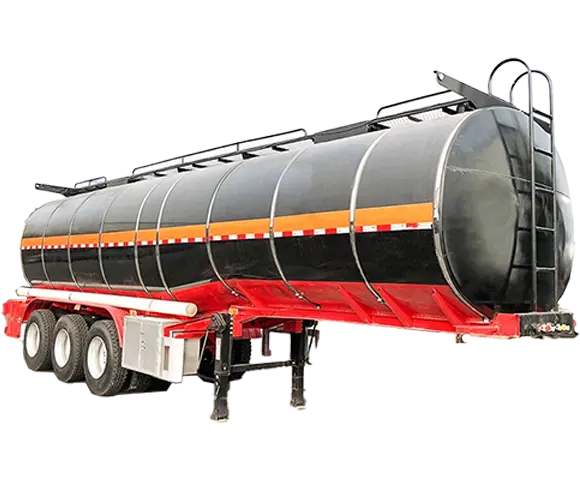

3 Axles Liquid Asphalt Heated Bitumen Transport Tanker Semi Trailer
This 3 axles heated bitumen tanker semi trailer is specially designed for liquid asphalt transport. Tank adopts Q235 carbon steel structure, supports 1–10 customizable compartments. It is equipped with API 3-inch discharge valve, 4-inch bottom safety valve, FUWA 13T axles, mechanical suspension, JOST/SAF 28T two-speed landing gear, optional 4S/2M ABS, LED lights and complete tool kits. Heating system keeps bitumen in liquid state during transportation.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
This 3 axles heated bitumen tanker semi trailer is professional transportation equipment for liquid asphalt. The tank body and end plates are made of Q235 carbon steel, with 4mm wave baffles to reduce liquid sloshing. The compartment quantity can be customized from 1 to 10 according to customer requirements. The built-in heating system maintains the bitumen at a stable temperature to prevent solidification during transit.
It is equipped with 500mm manhole, 3-inch API standard discharge valve and 4-inch bottom safety valve for reliable control and safety protection. Two 3-inch rubber discharge hoses are convenient for loading and unloading. Standard anti-slip walkway provides safe operation space for operators.
The chassis adopts three FUWA 13-ton axles, mechanical suspension with 10-layer leaf springs of 90mm×13mm. It is fitted with 2-inch bolted kingpin, JOST or SAF 28T two-speed landing gear. The brake system is equipped with 40L air tank and 6 double spring brake chambers; 4S/2M ABS is optional for improved braking safety. Triangle 295/80R22.5 tires and 9.0-22.5 rims guarantee stable running performance.
The whole trailer is processed by sandblasting, anti-rust primer and polyurethane topcoat for good anti-corrosion performance. It is equipped with 24V LED lighting system, 7-pin quick-change electrical connector, large tool box, spare tire carrier and complete supporting tools including socket wrench, spare tire crank, fire extinguisher and operation manual. Customization is available for different asphalt transport requirements.
| Item | Parameter |
| Front & Rear End Plate | 6mm Q235 carbon steel |
| Tank Body | 5mm Q235 carbon steel |
| Compartments | 1 to 10 compartments optional |
| Manhole Diameter | 500mm |
| Discharge Valve | 3 inch API standard |
| Wave Baffle Thickness | 4mm |
| Bottom Safety Valve | 4 inch |
| Discharge Hose | 3 inch rubber hose, 2 pcs |
| Top Walkway | Standard configuration |
| Axles | 3 pcs FUWA brand, 13 tons each |
| Rim | 9.0-22.5, 12 pcs |
| Tire | Triangle brand, 295/80R22.5, 12 pcs |
| Suspension | Mechanical suspension |
| Leaf Spring | 90mm × 13mm, 10 layers |
| Kingpin | 2 inch bolt-in type |
| Air Tank | 40L air tank |
| Brake Chamber | 6 double spring brake chambers |
| ABS | 4S/2M optional |
| Landing Gear | JOST / SAF 28T, two-speed type |
| Spare Tire Carrier | 1 set |
| Lights | LED lights |
| Electrical System | 7-pin, quick-change type, 24V, 7-core cable harness |
| Tool Box | 1 pc, 1000×500×500mm |
| Painting | Polyurethane paint, anti-rust primer, sandblasting treatment |
| Trailer Tools & Accessories | Socket wrench, spare tire crank, fire extinguisher, operation manual |
| Core Feature | With heating system for bitumen / liquid asphalt |
- Transport heated liquid asphalt and bitumen
- Road construction, highway maintenance project supply
- Asphalt mixing plant raw material delivery
- Transport other heat-preserved industrial liquid medium
