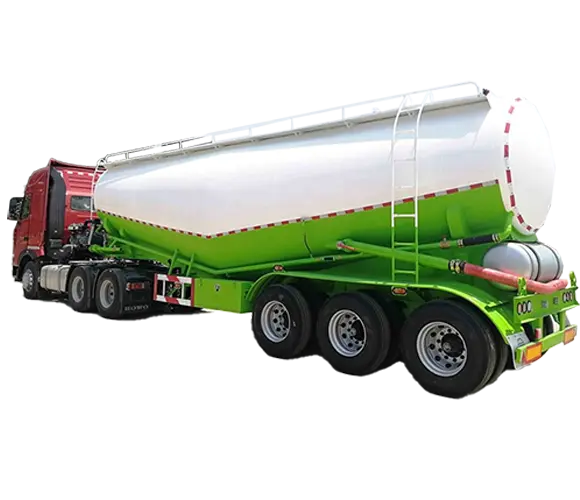

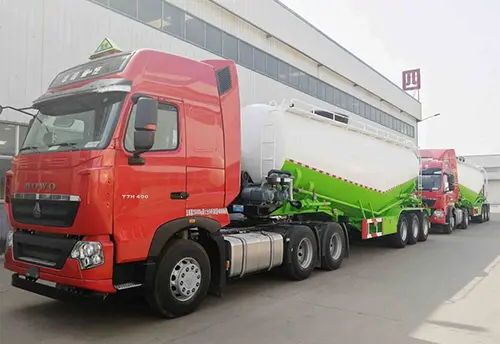

50T 3 Axles Cement Bulk Pneumatic Tanker Trailer
This 50T 3 axles pneumatic bulk cement tanker trailer is heavy duty powder transport equipment, customizable volume from 30CBM to 60CBM. It adopts high wear-resistant steel tank, equipped with BOHAI/KEFA 12m³ double cylinder air compressor and WEICHAI diesel engine. With heavy-duty mechanical suspension, JOST landing gear, WABCO brake system and 24V LED lights for overseas markets, it is suitable for cement, lime and other dry powder delivery.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
Short Description
This 50T 3 axles pneumatic bulk cement tanker trailer is professional heavy-load pneumatic powder transport equipment. The overall dimension and volume can be customized from 30CBM to 60CBM according to customer requirements. The tank is built of high wear-resistant steel, with 3.5mm tank shell and 5mm reinforced structure, which effectively resists abrasion caused by repeated powder loading and unloading.
It is equipped with BOHAI or KEFA 12m³ double-cylinder air compressor and WEICHAI diesel power unit. Stable air pressure provides pneumatic conveying for fast unloading of cement powder. Two spare tire carriers are configured for backup during long-distance transportation.
The chassis adopts heavy-duty mechanical suspension, JOST landing gear and reliable WABCO brake system to guarantee stable braking and safe driving under 50-ton loading condition. It comes with 12 tires, 24V LED lights designed for overseas markets and one set of standard tool box. The whole trailer is coated with polyurethane paint, featuring good anti-rust property and long service life.
This bulk tanker is widely used for cement, lime and other dry powder transportation. All specifications can be adjusted to adapt to different regional road standards and customer demands.
| Item | Parameter |
| Overall Dimension(L*W*H) | 11000×2500×3650 mm (Customized size available) |
| Tank Body Material | 5mm high wear-resistant steel |
| Tank Shell Thickness | 3.5 mm |
| Volume Range | 30 CBM – 60 CBM |
| Rated Load | 50 Ton |
| Axles | 3 axles |
| Tires | 12 pcs |
| Air Compressor | BOHAI / KEFA brand, 12m³ double cylinder air compressor |
| Spare Tire Carrier | 2 units |
| Diesel Engine | WEICHAI brand |
| Suspension | Heavy duty mechanical suspension |
| Landing Gear | JOST brand |
| Brake System | WABCO brand |
| Lights | LED lights, specially for overseas market |
| Voltage | 24V |
| Tool Box | 1 set |
| Painting | Polyurethane paint, excellent anti-rust performance and long service life |
- Bulk cement transportation for construction projects
- Transport lime, fly ash and other dry powder materials
- Cement plant bulk powder logistics and distribution
- Silica powder and other non-corrosive industrial powder delivery
