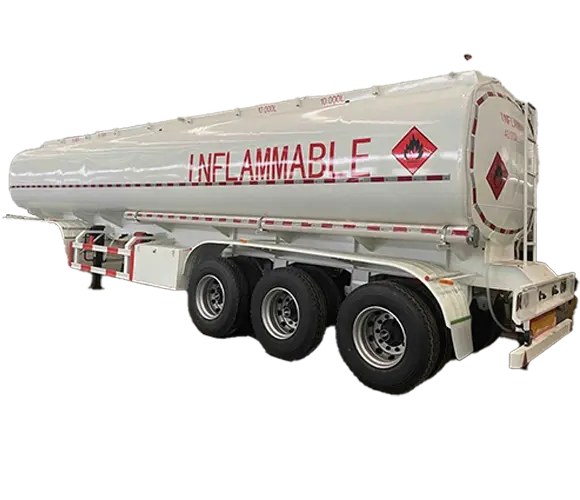

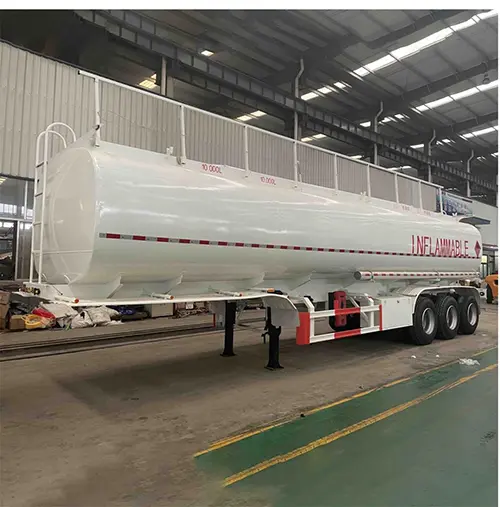

Axles 4 Compartments Fuel Tanker Semi Trailer
This 3 axles 40CBM fuel tanker semi trailer is available in Double D or round shape, with 4 separate 10000L compartments. Tank body is built with 6mm Q345 steel, fitted with European aluminum alloy manhole covers, 4-inch subsea bottom valves and 2.5-inch discharge outlets. Optional pump system and ABS, equipped with 3pcs 13T axles, JOST E100 two-speed landing gear, JOST bolted kingpin and WABCO brake system. Suitable for safe transportation of gasoline, diesel and other petroleum fuels.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
This 3 axles 4-compartment fuel tanker semi trailer can be made as Double D or round tank design, divided into four independent 10000L compartments for transporting different oil products separately. The tank shell adopts thicker 6mm Q345 steel, 6mm Q345 end plates and 5mm anti-wave baffles, delivering stronger structural strength and durability for heavy-duty fuel transport.
It is equipped with European standard aluminum alloy manhole covers, 4-inch subsea bottom valves and 2.5-inch discharge outlets. Two 6-meter rubber discharge hoses support flexible loading and unloading operations. The anti-slip walkway with foldable guardrails and anti-slip access ladder ensure safe maintenance and operation on tank top. A pump system is optional for self-priming and fast liquid transfer.
The chassis adopts heavy welded Q345 main beam, three 13-ton axles, JOST E100 two-speed landing gear and bolted kingpin. Mechanical suspension provides stable running performance on different roads. The air brake system uses reliable WABCO RE6 relay valve and TKL spring brake chambers, ABS is optional for extra driving safety. Triangle brand tires and complete standard accessories are supplied.
This tanker semi trailer can be shipped by bulk carrier. Customization on tank fittings and configurations is available to meet different client transport requirements.
| Item | Parameter |
| Tank Shape | Double D or Round shape |
| Overall Dimension(L*W*H) | 13000×2500×3800 mm (Final size subject to customer design & requirements) |
| Total Volume | 40 m³ (40000 Liters) |
| Compartments | 4 compartments, 10000L+10000L+10000L+10000L |
| Tank Body Material | 6mm thickness, Q345 steel |
| End Plate | 6mm thickness, Q345 steel |
| Wave Baffle | 5mm thickness, Q345 steel |
| Manhole Cover | 4 pcs, 500mm diameter, European type, aluminum alloy |
| Bottom Valve | 4 pcs, 4 inch European type subsea valve |
| Discharge Valve | 4 pcs, 2.5 inch European type outlet |
| Discharge Pipe | 2.5 inch rubber hose, 2 pcs, 6m per piece |
| Pump System | Optional |
| Top Walkway | Anti-slip walkway, foldable handrails beside manhole covers |
| Access Ladder | Anti-slip access ladder mounted at front or rear of tank head |
| Main Beam | Welded structure, Q345 steel |
| Axles | 3 axles, 13 tons each |
| Landing Gear | JOST E100, two-speed type |
| Kingpin | JOST 2.0 / 3.5 inch bolted kingpin |
| Suspension | Mechanical suspension |
| Air Brake System | WABCO RE6 relay valve; TKL spring brake chamber; 45L air tank |
| Rim | 9.0-22.5, 13 pcs |
| Tire | Triangle brand, 12R22.5, 13 pcs |
| ABS | Optional |
| Accessories | 1 standard tool box, 1 spare tire carrier |
| Shipping Term | Bulk vessel shipment |
- Transport gasoline, diesel, kerosene and other petroleum fuels
- Multi-oil product distribution for gas stations, mines and construction sites
- Transport non-corrosive industrial liquid cargo
- Bulk liquid fuel logistics and supply transportation
