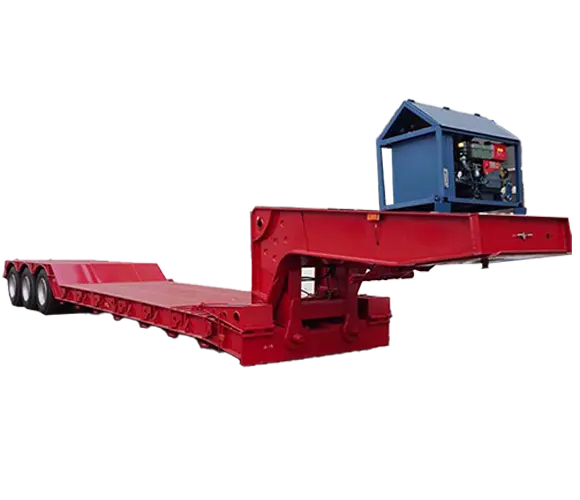

Detachable Removable Gooseneck Heavy Load Lowboy Lowbed Semi Trailer
This detachable removable gooseneck lowboy lowbed semi trailer has a payload of 60 tons and tare weight of 9 tons. It adopts heavy-duty Q345B H-beam main frame, 3 pcs 13T maintenance-free axles, mechanical suspension and WABCO relay valve brake system. Equipped with robust ramps, it is perfect for transporting excavators, loaders and other heavy engineering equipment.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
This detachable removable gooseneck lowboy lowbed semi trailer is specially designed for heavy equipment haulage. The gooseneck can be detached, allowing tracked machinery to drive directly onto the deck without lifting, which greatly improves loading and unloading efficiency and safety.
The main frame adopts heavy H-beam structure made of Q345B high strength carbon steel, with thick top, bottom and web plates to guarantee strong bearing capacity. The working deck is 4mm thick anti-slip plate, suitable for heavy loads. It is equipped with three 13-ton maintenance-free axles (FUWA or ZY optional), standard mechanical suspension and heavy leaf springs, stable on rough construction and mine roads.
The brake system uses dual-line air brake with WABCO emergency relay valve and 6 sets T30/30 spring brake chambers, ABS is optional for extra safety. The 24V lighting system meets international transport requirements, fully equipped with marker lights, turn signals, stop lights and reflectors.
It comes with Zhenhua 28T landing gear, heavy-duty loading ramps, dual spare tire carriers, tool box and complete tools. The surface treatment includes SA2.5 sandblasting, anti-rust primer and two layers of polyurethane finish paint with total dry film thickness over 100μm and wax protection, effectively anti-corrosion and extending service life. It is a reliable heavy lowbed trailer widely used for engineering equipment transportation.
| Item | Parameter |
| Overall Dimension(L*W*H) | 13000×3000×1650 mm |
| Working Deck Dimension | 9000×3000×1350 mm |
| Platform Thickness | 4 mm |
| Main Beam | H-type design, Q345B carbon steel, height 500mm; top plate 16mm, bottom plate 18mm, web plate 10mm |
| Wheel Base | 7650 mm + 1310 mm + 1310 mm |
| Payload | 60000 kg |
| Tare Weight | 9000 kg |
| GVW | 69000 kg |
| Axles | 3 pcs, 13T, FUWA / ZY optional, 150,000 km maintenance-free |
| Tires | 1100R20, 12 pcs, Taitong brand |
| Rims | 8.0*22.5 steel disc, 10-hole ISO, 12 pcs |
| Suspension | Standard mechanical suspension |
| Leaf Spring | 10/10/10 layers, 90mm width ×13mm thickness |
| Kingpin | 2 inch & 3.5 inch removable kingpin, bolted, 500mm from front bracket face |
| Landing Gear | Zhenhua brand, 28 ton |
| Brake System | Dual-line air brake, SAE hose & connector, WABCO emergency relay valve, 6 pcs T30/30 spring brake chambers, ABS optional |
| Electrical System | 24V, 7-pin socket, rear lights with turn signal, stop light, reflector, side marker light; 6-core cable harness with PVC conduit on main frame |
| Ramp | Heavy-duty trailer ramp |
| Spare Tire Carrier | 2 pcs |
| Rear Bumper | With rear bumper |
| Tool Box | 1 pc, including crank and shaft wrench |
| Painting | SA2.5 blasting before priming; one anti-rust primer + two polyurethane finish coats; total DFT ≥100μm, wax finished |
- Transport heavy construction machinery: excavators, loaders, bulldozers, road rollers
- Transport oversized industrial equipment, generator sets and drilling rigs
- Transport bulk cargo and heavy steel structures
- Engineering project haulage, mining and equipment rental transportation
