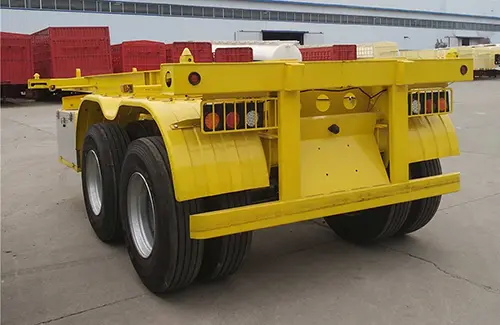

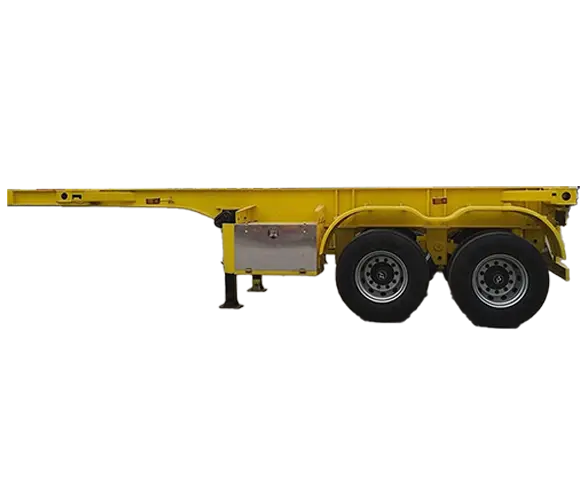

20FT Skeleton Container Chassis Semi Trailer
This 20FT skeleton container chassis semi trailer is built for 20ft standard shipping container transport. It adopts high strength steel frame, heavy-duty mechanical suspension, JOST landing gear and WABCO brake system, equipped with 24V LED lights for overseas markets. Size can be customized, widely used for port, container yard and highway container logistics.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
This 20FT skeleton container chassis semi trailer is professional container transport chassis, designed for loading 20-foot standard shipping containers. The overall dimension can be customized according to customer requirements. The main frame is made of 5mm high wear-resistant high strength steel, with strong load-bearing capacity and stable structure.
It is configured with 3 axles, 12 tires and 2 spare tire carriers for backup during long-distance transportation. The trailer uses heavy-duty mechanical suspension, JOST landing gear and reliable WABCO brake system to ensure stable braking and safe driving. It is fitted with 24V LED lights that meet overseas market standards, together with one set of standard tool box.
The whole frame is coated with polyurethane paint, featuring good anti-rust and anti-corrosion performance. This skeleton trailer is widely used in ports, container yards and logistics transportation. All specifications can be adjusted to fit different regional road standards and customer demands.
| Item | Parameter |
| Overall Dimension(L*W*H) | 11000×2500×3650 mm (Customized size available) |
| Frame Material | 5mm high wear-resistant high strength steel |
| Axles | 3 axles |
| Tires | 12 pcs |
| Spare Tire Carrier | 2 units |
| Suspension | Heavy duty mechanical suspension |
| Landing Gear | JOST brand |
| Brake System | WABCO brand |
| Lights | LED lights, specially for overseas market |
| Voltage | 24V |
| Tool Box | 1 set |
| Painting | Polyurethane paint, excellent anti-rust performance and long service life |
- Transport 20ft standard shipping containers
- Port, container depot and logistics park container transfer
- Short-distance and intercity container road transportation
- Carry containerized general cargo
