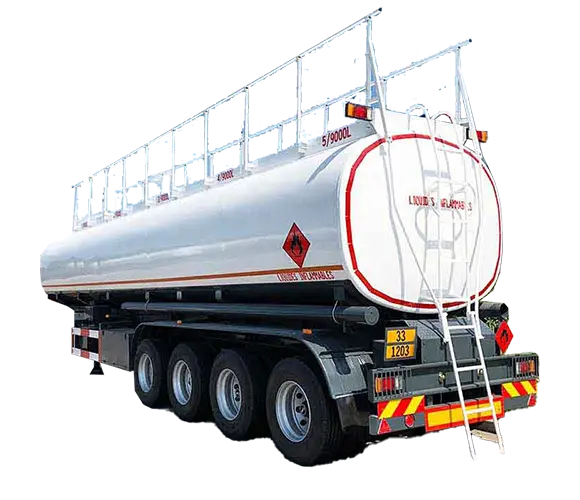

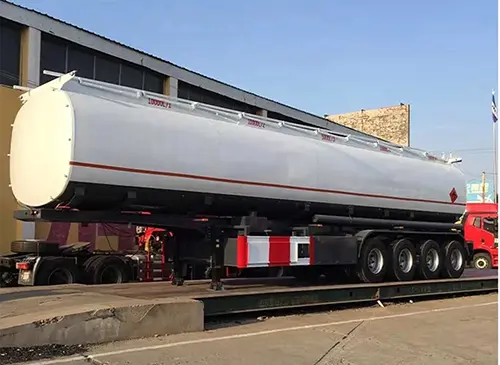

4 Axles Petrol Oil Tanker Trailer with Pump System
This 4-axle 45CBM petrol oil tanker trailer adopts Double D or round tank shape, divided into 5 separate 9000L compartments. The tank body is Q345 steel construction, fitted with European aluminum manhole covers, subsea bottom valves and discharge outlets. It comes with optional pump system, anti-slip walkway and access ladder, 4 pcs 13T axles, JOST landing gear and kingpin, WABCO brake system and optional ABS. Suitable for gasoline, diesel and other liquid fuel transport.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
This 4-axle 45CBM petrol oil tanker trailer is engineered for safe multi-compartment liquid fuel transportation. The tank can be built in Double D or round shape, separated into five independent 9000L compartments to carry different oil products separately. The tank shell, end plates and anti-wave baffles adopt high-strength Q345 steel with specified thickness to ensure structural stability and impact resistance during transit.
It is equipped with European standard aluminum alloy manhole covers, 4-inch subsea bottom valves and 2.5-inch discharge outlets. Two 6-meter rubber discharge hoses facilitate loading and unloading. The anti-slip walkway with foldable guardrails and anti-slip access ladder provide safe operation space for workers. A pump system is available as an optional upgrade for efficient liquid transfer.
The chassis uses heavy welded Q345 main beam, four 13-ton axles, JOST E100 two-speed landing gear and bolted kingpin. Mechanical suspension delivers stable running performance. The air brake system adopts reliable WABCO RE6 relay valve and TKL spring brake chambers, ABS is optional for extra driving safety. Triangle tires and complete standard accessories are supplied.
The trailer can be shipped by bulk carrier. Customization on tank shape, fittings and configurations is available to satisfy different client transport demands.
| Item | Parameter |
| Tank Shape | Double D or Round shape |
| Overall Dimension(L*W*H) | 12300×2500×3800 mm (Final size subject to customer design & requirements) |
| Total Volume | 45 m³ |
| Compartments | 5 compartments, 9000L+9000L+9000L+9000L+9000L |
| Tank Body Material | 5mm thickness, Q345 steel |
| End Plate | 6mm thickness, Q345 steel |
| Wave Baffle | 5mm thickness, Q345 steel |
| Manhole Cover | 5 pcs, 500mm diameter, European type, aluminum alloy |
| Bottom Valve | 5 pcs, 4 inch European type subsea valve |
| Discharge Valve | 5 pcs, 2.5 inch European type outlet |
| Discharge Pipe | 2.5 inch rubber hose, 2 pcs, 6m per piece |
| Pump System | Optional |
| Top Walkway | Anti-slip walkway, foldable handrails beside manhole covers |
| Access Ladder | Anti-slip access ladder mounted at front or rear of tank head |
| Main Beam | Welded structure, Q345 steel |
| Axles | 4 axles, 13 tons each |
| Landing Gear | JOST E100, two-speed type |
| Kingpin | JOST 2.0 / 3.5 inch bolted kingpin |
| Suspension | Mechanical suspension |
| Air Brake System | WABCO RE6 relay valve; TKL spring brake chamber; 45L air tank |
| Rim | 9.0-22.5, 13 pcs |
| Tire | Triangle brand, 12R22.5, 13 pcs |
| ABS | Optional |
| Accessories | 1 standard tool box, 1 spare tire carrier |
| Shipping Term | Bulk vessel shipment |
- Transport gasoline, diesel, kerosene and other petroleum fuels
- Multi-product fuel distribution for gas stations, mines and construction sites
- Transport non-corrosive industrial liquids
- Bulk liquid fuel supply and logistics transportation
