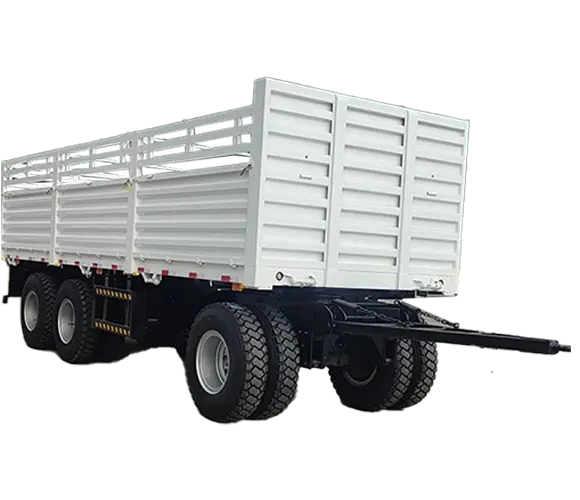

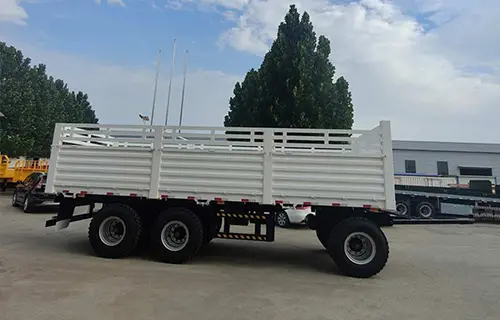

Tri Axles Side Fence Cargo Drawbar Trailer
This tri axles side fence drawbar cargo trailer has a 30-ton load capacity. It is equipped with 20T double ball turntable, BPW 13T 10-hole axles, German type three-axle suspension and leaf spring assembly. It adopts WABCO RE6 relay valve brake system, optional ABS, 24V ISO standard electrical system, customizable size and color, suitable for general cargo transport.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
This tri axles side fence drawbar cargo trailer is designed for 30-ton general cargo transportation. The standard dimension is 9800×2600×3060 mm, and custom dimensions are supported according to customer requirements. It is fitted with a 20T double ball turntable for flexible steering. The platform is made of 4mm anti-slip checkered plate for wear resistance.
It adopts BPW 13T 10-hole axles, German type tri-axle suspension and heavy-duty leaf springs: 100mm wide, 12mm thick, 12 layers, 6 sets in total. The trailer is equipped with 12 pieces of 12.00R20 tires and 9.00-20 rims. The brake system uses WABCO RE6 relay valve and T30/30+T30 brake chambers with 40L air tanks; ABS is optional for enhanced driving safety.
The electrical system is 24V with ISO 7-pin standard socket, full set of lights and reflectors to meet overseas traffic regulations, matched with 6-core standard cable. The trailer color can be customized. This side fence drawbar trailer is widely used for general cargo logistics, stable and durable for long-distance haulage.
| Item | Parameter |
| Rated Load Capacity | 30 Ton |
| Overall Dimension(L*W*H) | 9800×2600×3060 mm (Customized size available) |
| Turntable | 20T double ball turntable |
| Floor Plate | 4mm thick checkered plate |
| Axles | BPW 13T, 10 holes |
| Suspension | German type tri-axle suspension |
| Leaf Spring | 100mm width ×12mm thickness, 12 layers, 6 sets |
| Tires | 12.00R20, 12 pcs |
| Rims | 9.00-20, 12 pcs |
| ABS | Optional |
| Brake System | WABCO RE6 relay valve; T30/30+T30 air brake chamber; 40L air tanks |
| Electrical System | 24V ISO 7-pin standard socket; brake light, turn signal, reverse light, marker light, reflector, fog lamp; one set of 6-core standard cable |
| Color | Optional |
- Transport general pallet goods, packaged cargo and bulk materials
- Farm produce, building materials and industrial goods transportation
- Intercity logistics and distribution with drawbar truck
- Freight station and warehouse cargo transfer
