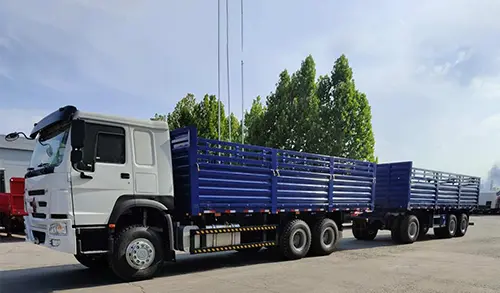

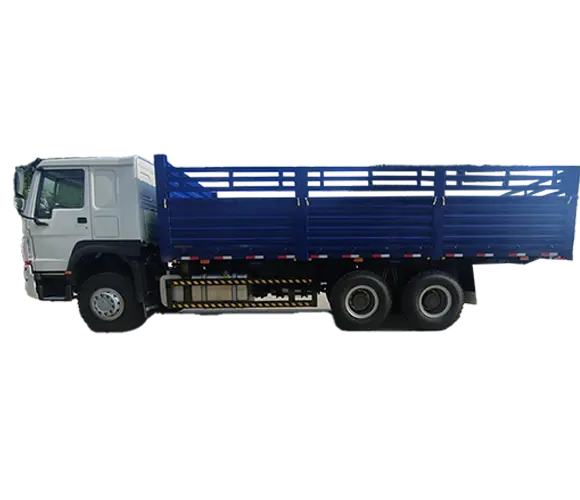

10 Wheels Fence Cargo Truck with Dolly Trailer
This 10 wheels fence cargo truck matched with dolly trailer has a rated load of 30T. It features customized cargo box size, special fence structure and 4mm checkered floor plate. Equipped with 20T double ball turntable, BPW 13T axles, German type tri-axle suspension, WABCO brake system and optional ABS, 24V ISO standard electrical system, color optional, suitable for general cargo transportation.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
This 10 wheels fence cargo truck with dolly trailer is designed for 30-ton general cargo haulage. The standard cargo box size is 7100×2600×1600 mm, and custom sizes are supported. It adopts a special fence structure: 900mm solid side wall plus 100mm gap and 440mm upper fence, which can prevent cargo from falling while keeping good ventilation. The platform is made of 4mm anti-slip checkered plate for wear resistance.
It is fitted with a 20T double ball turntable for flexible steering. The trailer uses BPW 13T 10-hole axles, German type tri-axle suspension and heavy-duty leaf springs: 100mm wide, 12mm thick, 12 layers, 6 sets in total. It comes with 12 pieces of 12.00R20 tires and 9.00-20 rims.
The brake system is equipped with WABCO RE6 relay valve and T30/30+T30 brake chambers with 40L air tanks; ABS is optional to improve driving safety. The electrical system is 24V with ISO 7-pin standard socket, complete lights and reflectors complying with overseas traffic regulations, matched with 6-core standard cable. The paint color can be customized according to customer requirements. This combination is sturdy and reliable for heavy load logistics.
| Item | Parameter |
| Cargo Box Dimension(L*W*H) | 7100×2600×1600 mm (Customized size available) |
| Fence Structure | 900mm side wall + 100mm gap + 440mm fence |
| Floor Plate | 4mm thick checkered plate |
| Rated Load Capacity | 30 Ton |
| Turntable | 20T double ball turntable |
| Axles | BPW 13T, 10 holes |
| Suspension | German type tri-axle suspension |
| Leaf Spring | 100mm width × 12mm thickness, 12 layers, 6 sets |
| Tires | 12.00R20, 12 pcs |
| Rims | 9.00-20, 12 pcs |
| ABS | Optional |
| Brake System | WABCO RE6 relay valve; T30/30+T30 air brake chamber; 40L air tanks |
| Electrical System | 24V ISO 7-pin standard socket; brake light, turn signal, reverse light, marker light, reflector, fog lamp; one set of 6-core standard cable |
| Color | Optional |
- Transport packaged goods, pallet cargo and bulk materials
- Building materials, agricultural products and industrial goods delivery
- Long-distance intercity logistics transportation
- Cargo transfer at freight stations and warehouses
