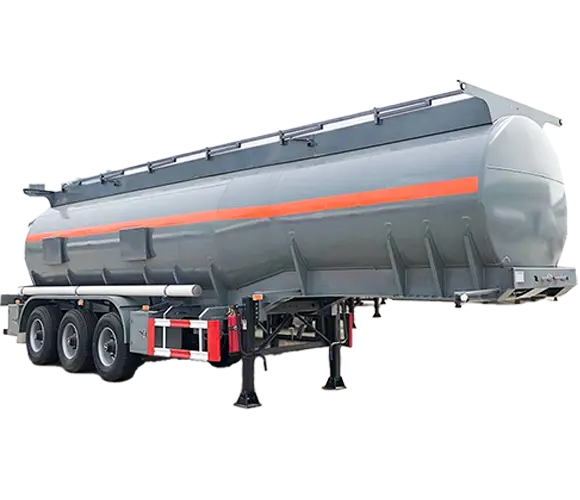

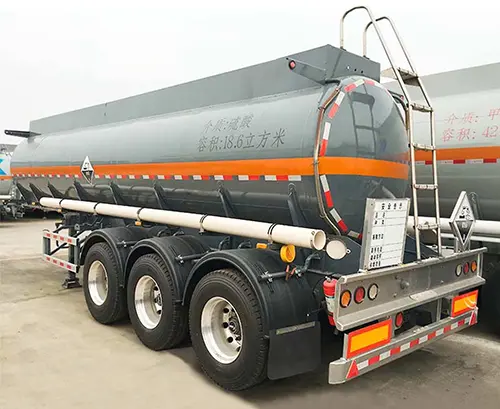

3 Axles 25000L 35 Ton Chemical Liquid Sulfuric Acid Tanker Semi Trailer
This 3 axles 25000L sulfuric acid tanker semi trailer features 35-ton loading capacity, constructed with Q235 carbon steel. It supports 1–10 customizable compartments, fitted with API standard 3-inch discharge valves and 4-inch bottom safety valves. Equipped with FUWA 13T axles, mechanical suspension, JOST/SAF 28T two-speed landing gear, optional 4S/2M ABS, LED lights and complete accessories. Designed for safe transportation of sulfuric acid and other chemical liquids.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
This 3 axles 25000L sulfuric acid chemical tanker semi trailer is designed for 35-ton heavy load chemical liquid transportation. The tank body and end plates adopt Q235 carbon steel, with 4mm wave baffles to reduce liquid sloshing during transit. The compartment quantity can be customized from 1 to 10 to meet different separate loading demands.
It is equipped with 500mm diameter manhole, 3-inch API standard discharge valve and 4-inch bottom safety valve for reliable control and safety protection. Two 3-inch rubber discharge hoses facilitate liquid loading and unloading. Standard top walkway provides safe operation space for operators.
The chassis adopts three FUWA 13-ton axles, mechanical suspension with 10-layer leaf springs of 90mm×13mm. It is fitted with 2-inch bolted kingpin, JOST or SAF 28T two-speed landing gear. The brake system is equipped with 40L air tank and 6 double spring brake chambers; 4S/2M ABS is optional for enhanced braking safety. Triangle 295/80R22.5 tires and 9.0-22.5 rims ensure stable running.
The whole trailer undergoes sandblasting treatment, anti-rust primer and polyurethane topcoat for excellent corrosion resistance. It is equipped with 24V LED lighting system, 7-pin quick-change electrical connector, large tool box, spare tire carrier and complete supporting tools including socket wrench, spare tire crank, fire extinguisher and operation manual. Customization is available for different chemical transport requirements.
| Item | Parameter |
| Rated Capacity | 25000L, 35 Ton |
| Front & Rear End Plate | 6mm Q235 carbon steel |
| Tank Body | 5mm Q235 carbon steel |
| Compartments | 1 to 10 compartments optional |
| Manhole Diameter | 500mm |
| Discharge Valve | 3 inch API standard |
| Wave Baffle Thickness | 4mm |
| Bottom Safety Valve | 4 inch |
| Discharge Hose | 3 inch rubber hose, 2 pcs |
| Top Walkway | Standard configuration |
| Axles | 3 pcs FUWA brand, 13 tons each |
| Rim | 9.0-22.5, 12 pcs |
| Tire | Triangle brand, 295/80R22.5, 12 pcs |
| Suspension | Mechanical suspension |
| Leaf Spring | 90mm × 13mm, 10 layers |
| Kingpin | 2 inch bolt-in type |
| Air Tank | 40L air tank |
| Brake Chamber | 6 double spring brake chambers |
| ABS | 4S/2M optional |
| Landing Gear | JOST / SAF 28T, two-speed type |
| Spare Tire Carrier | 1 set |
| Lights | LED lights |
| Electrical System | 7-pin, quick-change type, 24V, 7-core cable harness |
| Tool Box | 1 pc, 1000×500×500mm |
| Painting | Polyurethane paint, anti-rust primer, sandblasting treatment |
| Trailer Tools & Accessories | Socket wrench, spare tire crank, fire extinguisher, operation manual |
- Transport sulfuric acid and other corrosive chemical liquids
- Chemical plant bulk liquid chemical logistics
- Chemical raw material distribution for industrial parks
- Transport other compatible non-corrosive industrial liquid medium
